Description

Big Blue L-100 vacuum bag film is a multi-layer film for applications where a wide film is required. It is suitable for resin infusion and wet lay-up where the cure temperature does not exceed 121°C (250°F).

Benefits

• Super wide films save time spent seaming film when bagging large parts.
• Wider films reduce risk of scrap parts due to leaky film seams.
• Inexpensive film reduces vacuum bagging costs.

Technical data

		Test method
Material type	Polyolefin, multi-layer
Elongation at break	350 %	ASTM D 882
Tensile strength	21 MPa (3100 psi)	ASTM D 882
Maximum use temperature	121°C (250°F)
Flammability (self extinguishing)	No	ATP-5034
Materials to avoid	Phenolic resins / Strong oxidizers
Colour	Blue
Storage	Recommended Storage temperature is 5°C to 40°C (41°F to 104°F). Store indoors in original packaging, do not stack rolls on end.

Sizes

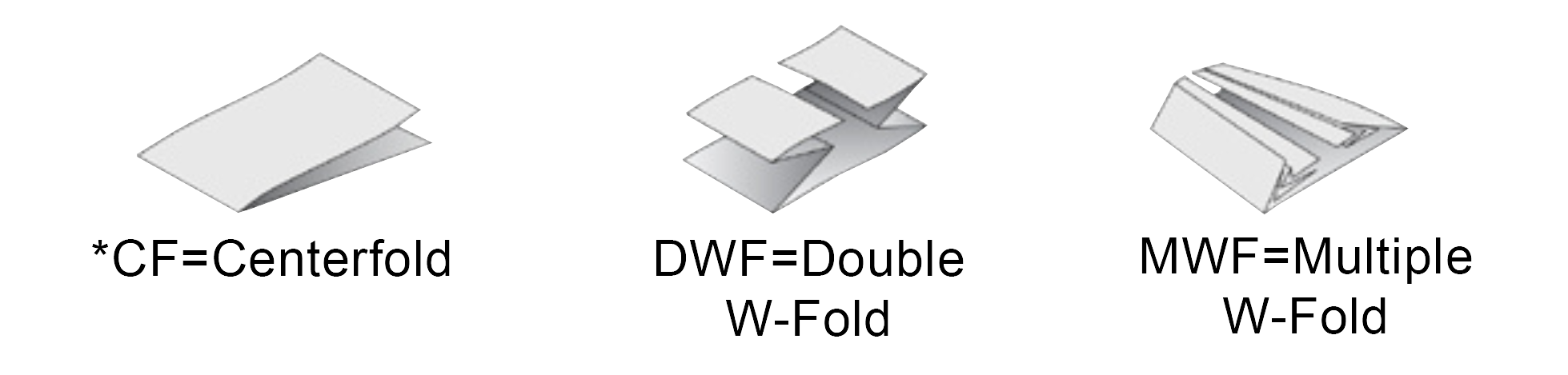

Thickness	Width	Forms Available^*
75 µm (0.003 inch)	up to 16 m (52.5 feet)	varies

• For more sizes, see the Sizes chart in this section.
• Custom shapes and sizes are available, please contact Airtech for more information.
• Maximum width of 16 m (52.5 feet) is available special order, subject to a minimum order quantity.

Sustainability

Notes

• The maximum use temperature is dependent upon the duration at maximum temperature and is process
specific, Airtech recommends testing prior to use.
• Watch a video of Wide Films in the "Media Centre" on our website.
• Film has low slip characteristics to reduce risk of operator slips when moving across very large vacuum bags.
