Vacuum Valves & Hoses

Name	Description	Service temperature
Name Vac Valve TTL	DescriptionThru Tape Line vacuum valve	Service temperature538°C (1000°F)
Name
Name Airtech Vacuum Test Unit	Description-	Service temperature-
Name
Name Vac Valve BBV	DescriptionSelf cutting vacuum valve	Service temperature260°C (500°F)
Name
Name Vac Valve 200	DescriptionTwo piece vacuum valve for reusable vacuum bag applications	Service temperature232°C (450°F)
Name
Name Vac Valve 399	DescriptionInexpensive machined aluminum twist valve	Service temperature260°C (500°F)
Name
Name Vac Valve 400 & 400SS	DescriptionTwist valve with a positive seal	Service temperature260°C (500°F)
Name
Name Vac Valve 401, 401A, & 401C	DescriptionMake vacuum bag connections positive and fast	Service temperature260°C (500°F)
Name
Name Vac Valve 402, 402A, & 402SS	DescriptionThree piece threaded vacuum valve with locking ring	Service temperature260°C (500°F)
Name
Name Vac Valve 406 TF	DescriptionThreaded base valve with a positive pressure seal	Service temperature260°C (500°F)
Name

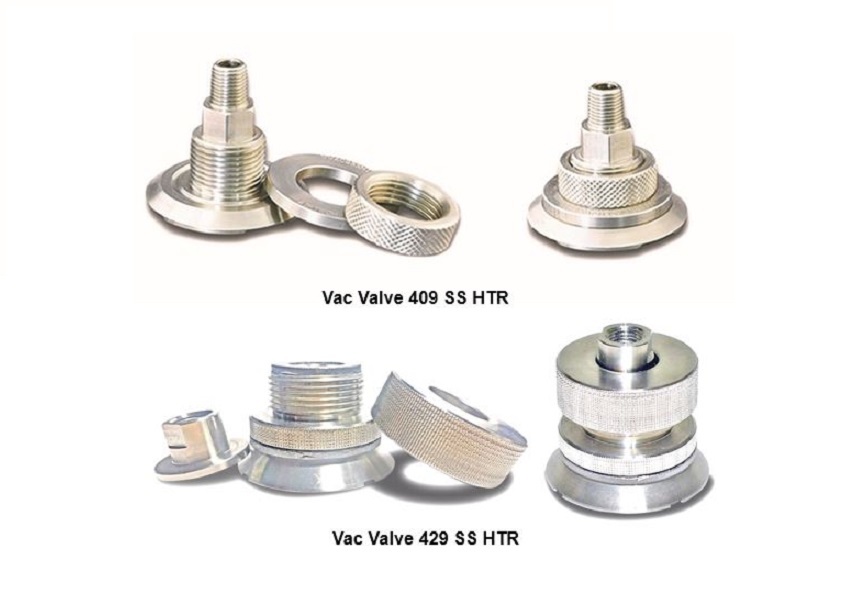

Name Vac Valve 409 SS HTR	DescriptionStainless steel vacuum valve for cures up to 482°C (900°F)	Service temperature482°C (900°F)
Name
Name Vac Valve 429 SS HTR	DescriptionStainless steel vacuum valve with graphite seal, usable up to 482°C (900°F)	Service temperature482°C (900°F)
Name
Name Vac Valve pad A241 MFD & A22C	DescriptionPrevents seal off in vacuum bag lay-ups	Service temperature-
Name
Name Premium Blanking Cap 500	DescriptionBlocks unused vacuum connections	Service temperature246°C (475°F)
Name
Name Premium Multi-Valve 407	DescriptionVacuum bag connector with leak free solid body	Service temperature260°C (500°F)
Name
Name Premium Multi-Valve 407 Seal and Replacement Parts	Description-	Service temperature260°C (500°F)
Name
Name Premium Multi-Valve 408	DescriptionVacuum bag connector with leak free solid body	Service temperature260°C (500°F)
Name
Name Standard hose assemblies	DescriptionService range from 135°C (275°F) to 482°C (900°F)	Service temperature-
Name
Name Airflow 65R	DescriptionThe all purpose hose for composites, bonding and tool shops	Service temperature232°C (450°F)
Name
Name Airflow 100, 100S, 100R, 100 Armor Sleeve	DescriptionHigh temperature autoclave/oven hoses	Service temperature260°C (500°F)
Name
Name AHTC-1000 QTD	DescriptionHigh temperature, all metallic, quick turn disconnect	Service temperature538°C (1000°F)
Name
Name Airlock 450TF & 550TF	DescriptionQuick disconnect for autoclave operation	Service temperatureAirlock 450TF: 232°C (450°F) Airlock 550TF: 287°C (550°F)
Name
Name Airvac 22	DescriptionVenturi style vacuum source used with pressurized air lines	Service temperature-
Name
Name Airflow 800	DescriptionVery high temperature autoclave vacuum hose	Service temperature482°C (900°F)
Name

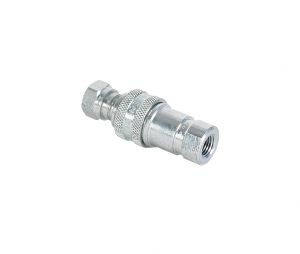

Name AQD 500TF	DescriptionTwo piece quick disconnect	Service temperature260°C (500°F)
Name
Name BBH 1080	DescriptionHigh temperature autoclave/oven hose	Service temperature482°C (900°F)
Name
Name Econoflow 59R	DescriptionEconomical vacuum hose for non-autoclave applications	Service temperature135°C (275°F)
Name

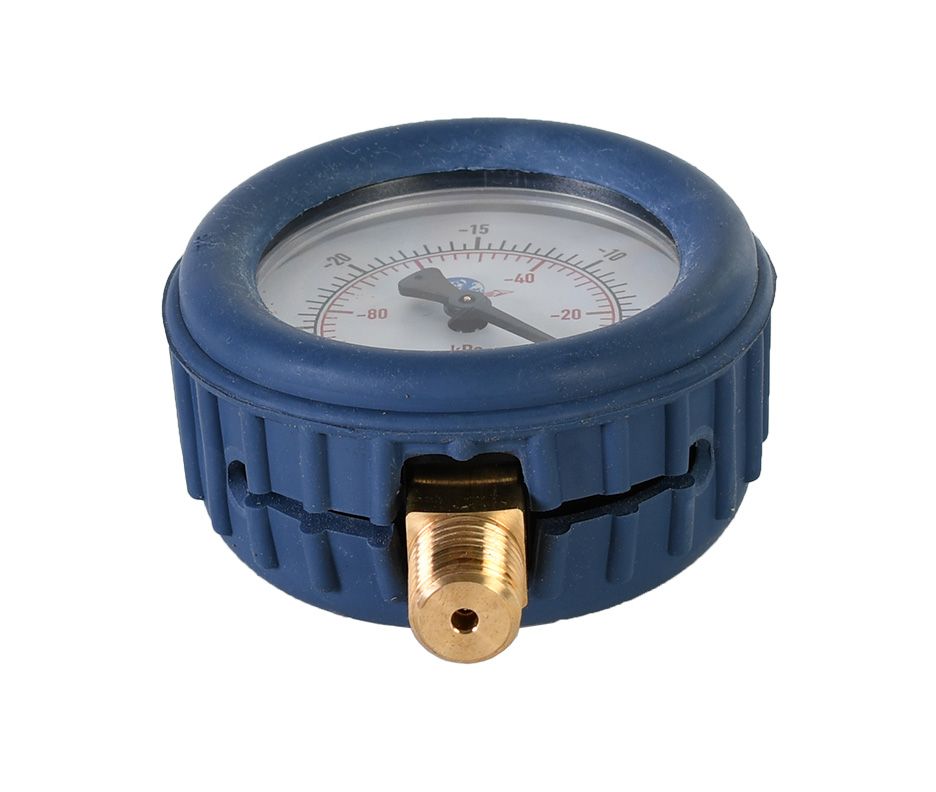

Name Vac-Gauge 30 & THA	DescriptionInexpensive vacuum gauge	Service temperature-
Name
Name Vac-Gauge 40D	DescriptionDigital Vacuum Gauge	Service temperature-
Name
Name Vac-Reg	DescriptionVacuum regulator	Service temperature-
Name
Name Vac Saver HT	DescriptionOne way valve	Service temperature200°C (392°F)
Name
Name Vac View 10	DescriptionVacuum leak indicator	Service temperature-
Name
Name Tool Valve 125 & 150	DescriptionVacuum port for mould tool integration of vacuum connection	Service temperature260°C (500°F)
Name
Name Tool Valve 150 UHT	DescriptionVacuum port for mould tool integration of vacuum connection	Service temperature538°C (1000°F)
Name

Airtech valves and vacuum tubes are specifically designed for use with composite materials. We offer high-temperature vacuum valves and hoses that are specifically designed to meet the needs. Depending on the implementation constraints, a large variety of valves and pipes are available (length, material, temperature resistance, reinforcement, etc.)

They are most commonly used for thermoplastic prepreg fabrication in an autoclave or infusion at 482°C. From quick releases to pressure gauges to regulators to hoses that can withstand high or low temperatures, we have everything you need.

Vacuum valves and hoses are critical, but often overlooked, components of any vacuum bagging operation. Vacuum valves and hoses must provide a leak-proof connection to the vacuum source, be it the autoclave vacuum connection, oven connection, or directly to a vacuum pump to the vacuum bagged assembly through the vacuum valve that penetrates the bagging film.

Airtech’s Vac-Valves and Hoses are designed for reliability in harsh industrial environments. Airtech offers Vacuum Valves and Hoses appropriate for resin infusion,oven, and autoclave operations up to 800°F (427°C). This section also includes regulators, gauges, blanking caps, quick disconnects, one-way valves, and vacuum test units to validate vacuum integrity on autoclave and oven hoses prior to cure.
