Description

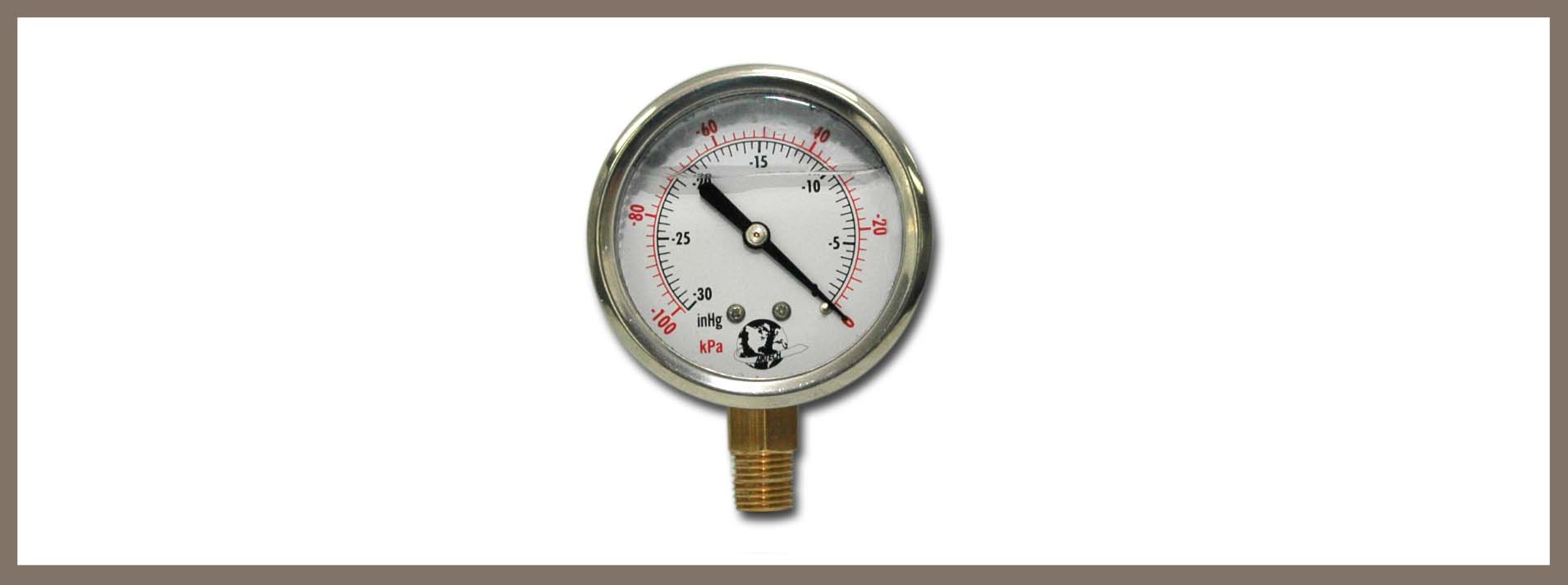

Vac-Gauge THA is a shock resistant, liquid filled vacuum gauge designed as a reference in determining vacuum integrity. Technicians can easily detect if a vacuum bag or mold is leaking in addition to establishing the rate of vacuum decay. Vac-Gauge THA has a 1/4 inch male NPT fitting that easily attaches to our AQD 500TF, Airlock 450TF & 550TF quick disconnect couplings.

Note: Vac-Gauge THA is an inexpensive reference gauge for shop use only.

Benefits

• Simple gauge provides indication of vacuum level and highlights any leaks present.
• Portable gauge can be transported easily around the workshop.
• Liquid fill provides added shock protection to keep gauge working.

Technical data

Screw thread	1/4 inch male NPT
Assembly style	Screwed
Range	0 - 30 in. Hg (0 - 100 kPa)
Graduations	0.5 in. Hg (2 kPa)
Figure interval	5 in. Hg (20 kPa)

Directions for use

Vacuum drop / Vacuum leak check:
• Attach Vac-Gauge THA to through bag connector and attach vacuum source.
• Allow vacuum source to draw out air and apply increasing vacuum force, this will be indicated on the
Vac-Gauge THA.
• Check and fix potential leakage areas until a stable and satisfactory reading is shown on the gauge.
• Disconnect vacuum source and monitor vacuum reading over period of time. Any drop in vacuum reading
highlights a leakage.

Last updated : 2024-05-02
